| Model: | JDX-1581-62 |
| Rated voltage： | DC12V（24V customization） |
| Flashing setting： | 1-3Hz main light |
| Dimensions： | 1500mm*500mm*90mm |
| Net weight： | 24.6Kg |
| Controller： | JDX-K3 |
Large Electronic Flashing Vehicle Arrow Board JDX-1581
Model：JDX-1581
Large electronic flashing arrow panels for truck, model NO. Is JDX-1581-62, one full set includes single arrow light panel and controller. There is a micro computer chip inside, and communication line connected LED screen with controller when system is working. so as to ensure the synchronization between the controller and the display screen, meet the requirements of humanized design, and operation more convenient.
Inquiry NowPRODUCT DETAILS
We Specialized Vehicular Arrow Board 20 Years.
Large electronic flashing arrow panels for truck,model NO.Is JDX-1581-62. And one full set includes single arrow light panel and controller.In addition there is a micro computer chip inside,and communication line connected LED screen with controller when system is working.Further to ensure the synchronization between the controller and the display screen,meet the requirements of humanized design, and operation more convenient.
Firstly,the flashing arrow boards,working voltage 12V or 24V optional ,rated power less than or equal to W, in addition the frequency 1-3hz and 27 pieces modules for this type.
Secondly,Controller install in vehicle driving room, therefore we can control the arrow board in cab directly. Certainly synchronous display function with controller and arrow board, optional different mode of switch. Model JDX-K3 controller support this type arrow board. The controller can not only control the product, but also display flashing mode independently when working.And it’s visible fully.Click here for all controller mode, and provide extension cord,6 meters matched , alternative others size as well.
Third ,the arrow boards for truck widely using in engineering emergency vehicles of municipal system,sprinklers, maintenance truck, also Trailer and road sweeper, freeway.
Above all It can display excellent warning and direction information.power supply from vehicle-mounted DC,safer,convenient,and low power consumption,also can keep working long time.The board is solid and light,and arrow signal displayed by flowing water dynamically,eye-catching,good visual effect and visible in long distance,has been widely used in municipal systems.
Forth,the large electronic flashing arrow panels mainly installed in vehicle. Matching our bracket in installation,connect the vehicle surface at same time and fixed with assorted screws.In conclusion customized mounting hole of bracket, diverse installation plan to meet customer’s requirement with different vehicle.
Finally, you can contact us in time to answer you online
Technical services for customized and designed products：
what are the advantages of your company？
Firstly,Brand awareness as the top leader in warning light industry.furthermore, we provide service term in Technology and research 24 hours. and complete production line in time.
an you do OEM？
We can provide OEM support for customers.
What kind of specific support can you provide for OEM？
Firstly designing product,mold opening and produce molds, making samples after opening molds, also product program design, appearance design, accessories customization and Laser cutting.
Do you produce and process by yourself？
Yes. Located as factory for 35 years. And we complete all product design, development and mold independently. Also we have a complete set of production line.
Payment term and deadlines？
Firstly We accept bank T/T payment term,
Then For the first cooperation, generally deal with 100% prepaid TT.
Also TT 50% as a deposit for the next order after the first cooperation, and balance will be paid before shipment.
Meanwhile,The L/C payment term can be negotiated
What is the lead time of samples？
Samples usually take 3-7 working days.
Where are you in China?
Wenzhou, 480 km from Shanghai. 300 km from Ningbo.
Which port do you usually ship the goods:
Shanghai and Ningbo port.
How to claim for warranty if there is something wrong with the product?
Firstly warranty period is one year.In addition, three years, five years optional with different products and prices, so that different warranty period.
We can provide customers with customized and designed content about vehicle arrow board
- Firtly,product LOGO laser marking .
We can operate Laser marking machine as per customer’s requirement，also Printing logo in the PC lens, product information and text in aluminum plate
- Second,control program customization for product
According to program modification,also flash mode and frequency customizing,in addition,procedural issues as per customer’s requirement.
- Then,Mould opening
We can custom-made plastic mould,and metal working mould as customer’s requirement.
- And then,injection molding for Plastic parts
Specialized injection molding workshop, with 6 set machine making different grams accessory, PC cover and lens as well.
Furthermore，Laser cutting of metal plates,a large laser cutting machine processing aluminum and iron plates, available with same thickness and dimension further.we can also finish if provide customer’s CAD drawing.
- The devices in processing center can produce mould according to customers’ drawings, which is concern point from customer’s requirements ,and our advantage different from Conventional factories as well.
- “5S” management operating system, “high quality, high efficiency and low consumption” ,meanwhile, in injection mould work site meeting automatic production workshop.
8. Stability of raw material supply system to ensure delivery time; more importantly,design personalized product by using different raw materials.

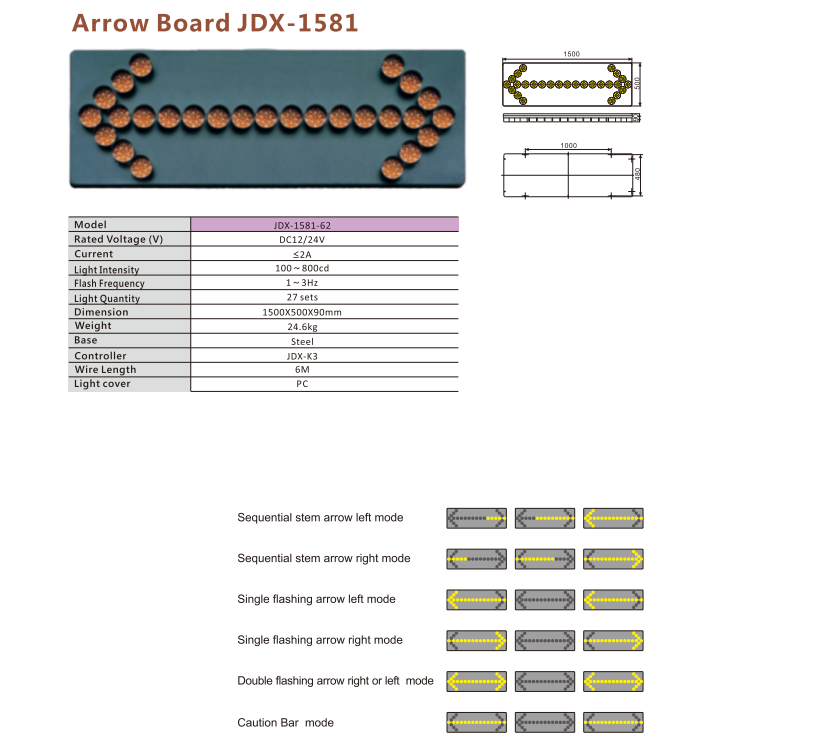

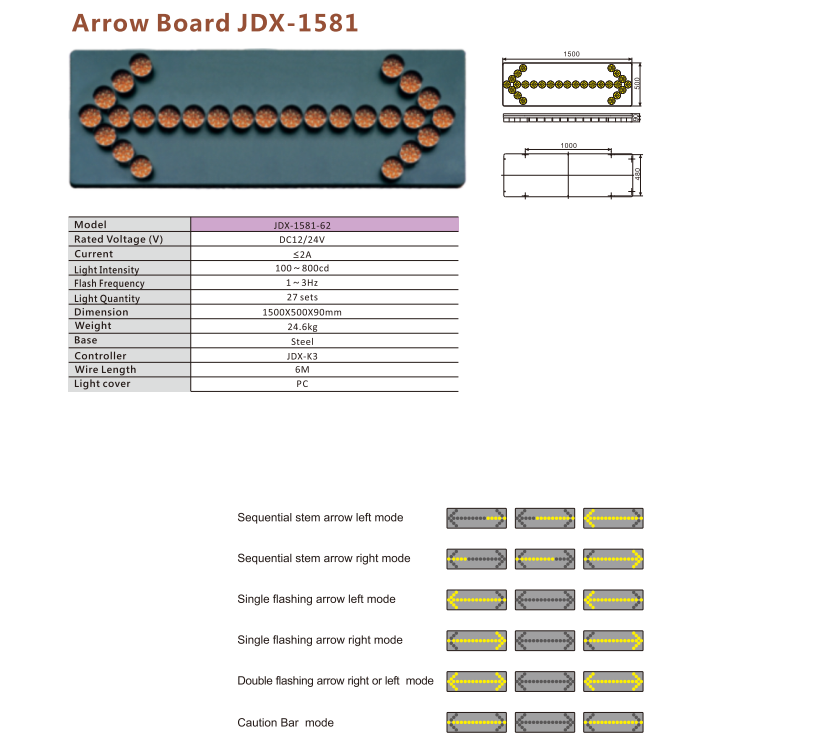

Display Patterns
